The surface materials of stadium track we offered includes:

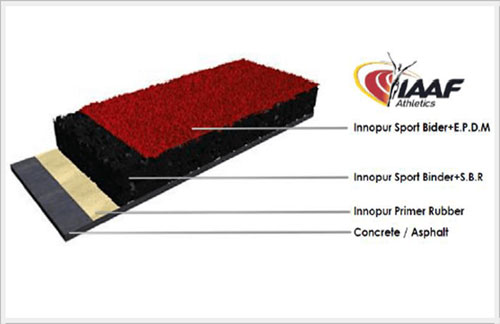

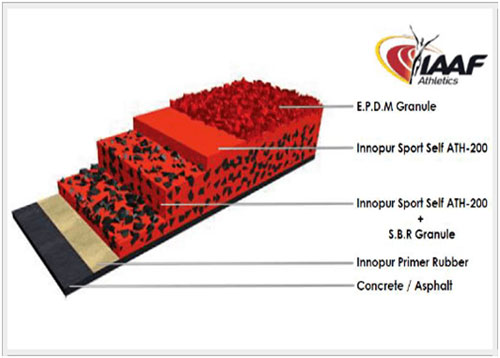

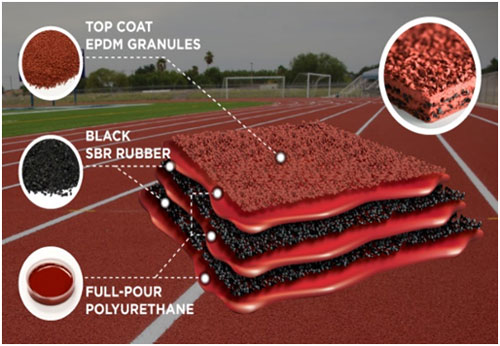

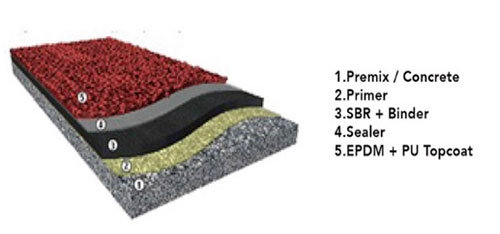

FULL POUR SYSTEM: In situ two layers of SBR rubber mixed with 50% elastic polyurethane flood coat and finished with a topping of coloured EPDM granules broadcast onto the polyurethane compound.
Total System Thickness: 13mm – 18mm
- A – Structured cast coating (3 – 5mm) spread with EPDM granules (granulation 1 – 4mm)
- B – Cast Coating (multiple layers, approx. .5mm each) spread with recycling rubber granules (granulation 1 – 4mm)
- C – Bound Subbase (asphalt) or Cement Concrete

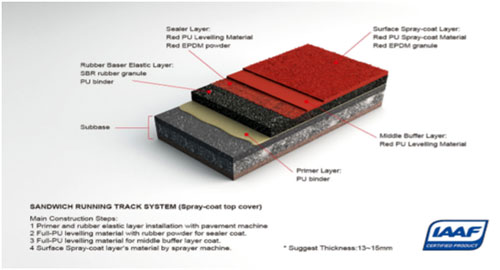

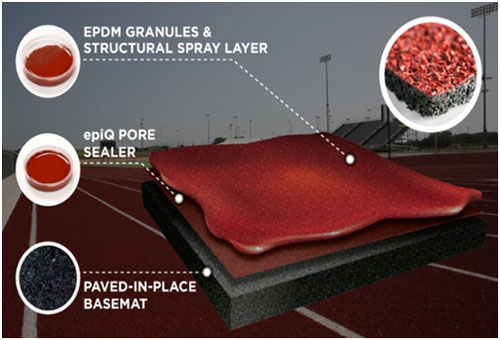

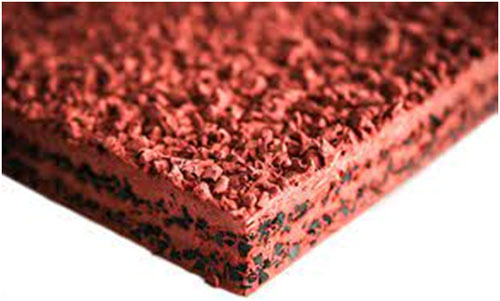

SANDWICH SYSTEM: Total System Thickness: 13mm – 17mm
- A – Structured cast coating (3 – 5mm) spread with EPDM granules (granulation 1 – 4mm)
- B – Pore Sealing
- C – Elastic layer (10mm – 12mm) recycling rubber granules (granulation 1 – 4mm)
- D – Bound Subbase (asphalt) or Cement Concrete

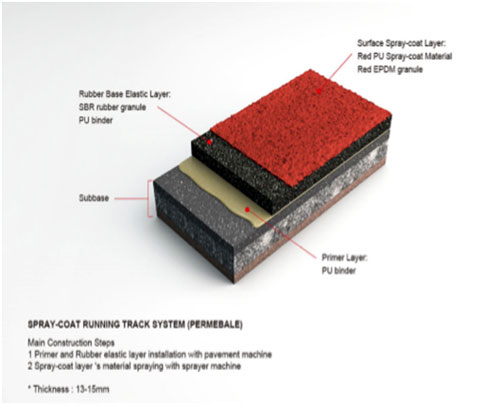

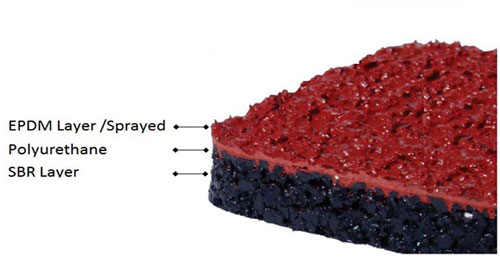

SPRAY COAT SYSTEM: Spray coat system running track – Total System Thickness: 13mm to 15mm.
Color: Red, Blue & Green.
Description: 10mm Black SBR Base Layer with PU 2: and 0.5mm to 1.5mm EPDM Granules Spray Top Coats and Can add PU Surface Layer Top Layer Protect.
- Evenness, ageing resistance, excellent all-weather performance, environmental protection, excellent resilience and steady footing.
- Excellent impact absorption which can avoid athletes being injured.
- Product Certified by International Association of Athletics Federations (IAAF).

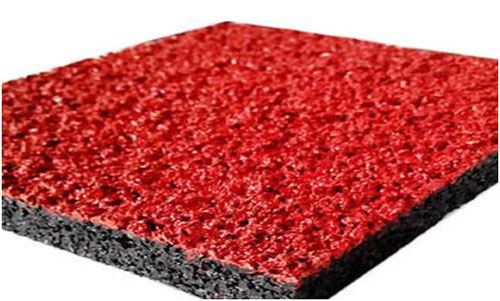

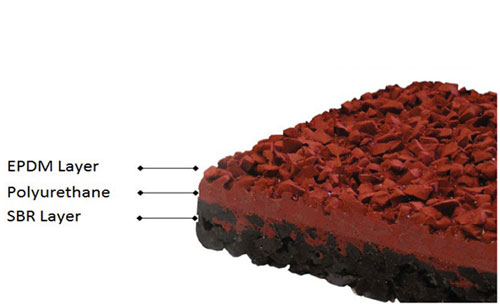

SBR RECLAIMED RUBBER BASE OF 10 TO 12MM, is sealed with a combination of micronized rubber and polyurethane, with a final topping of coloured EPDM granules broadcast onto a flood coat of polyurethane compound.

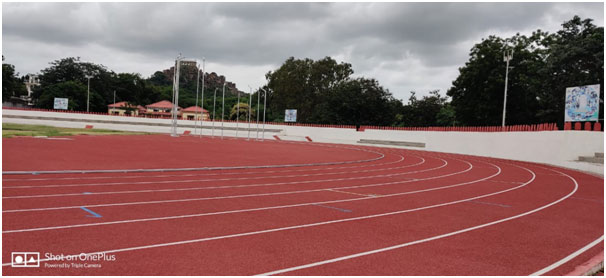

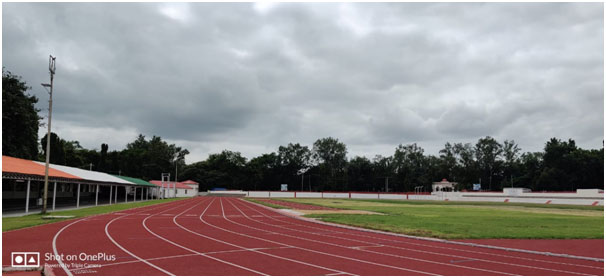

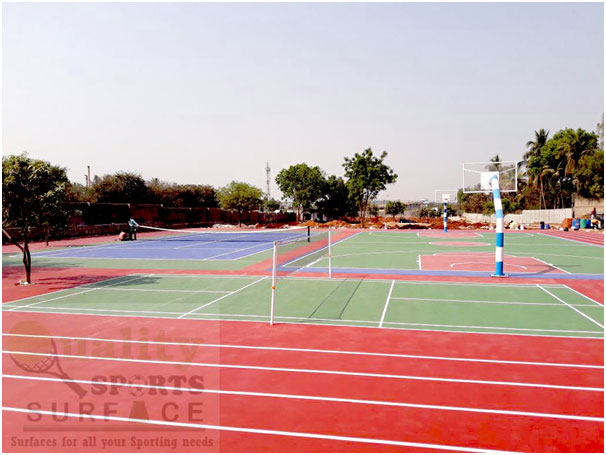

PROJECT WORKS
